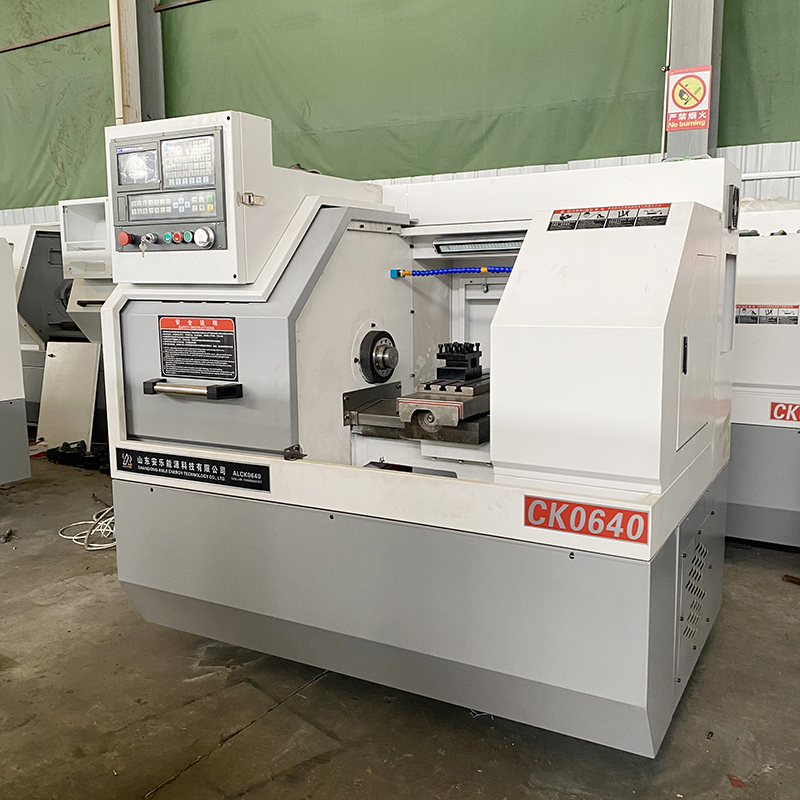

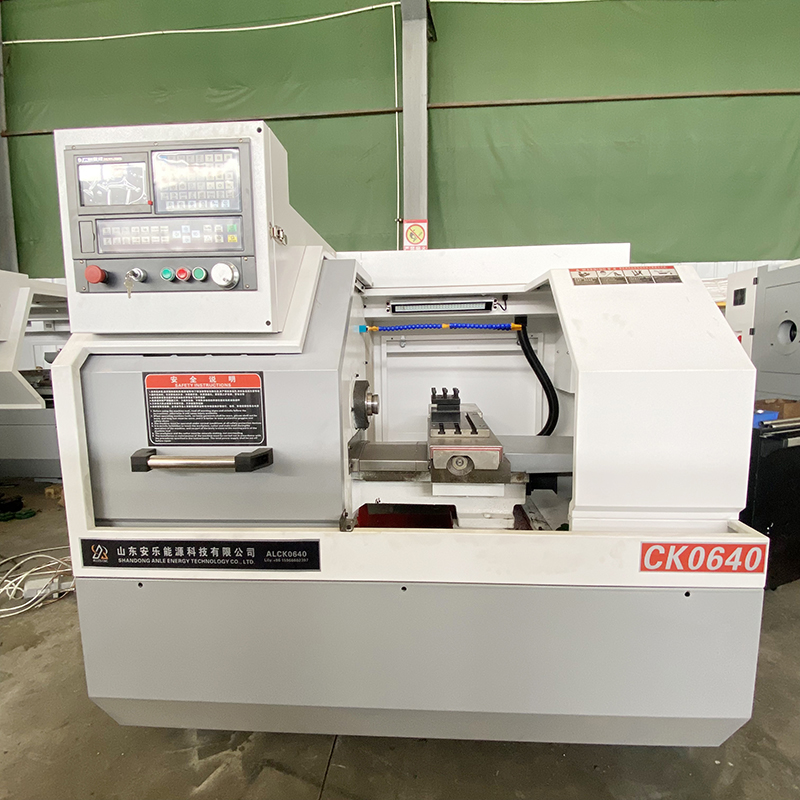

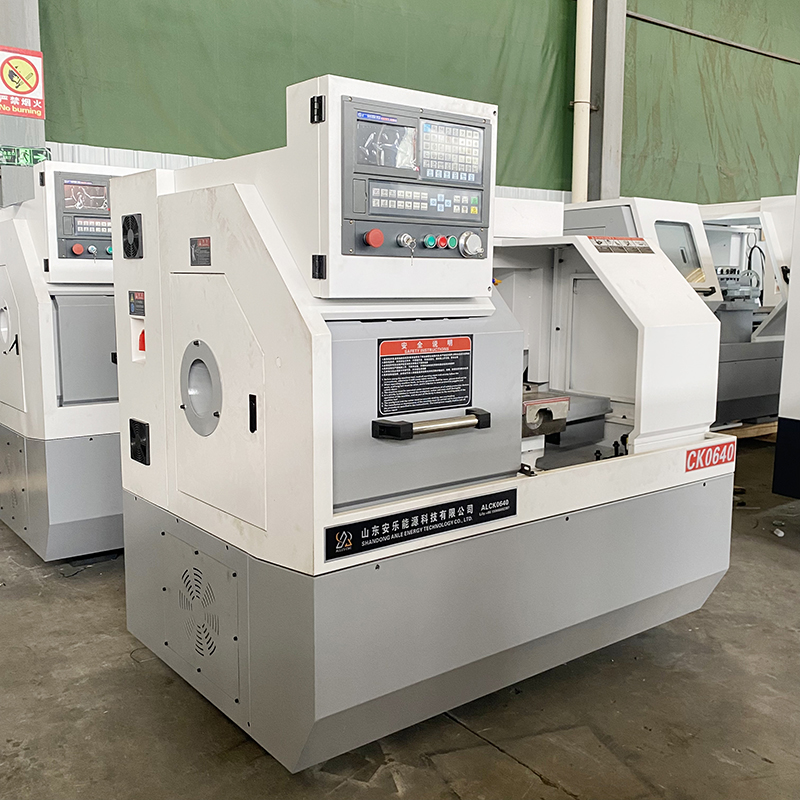

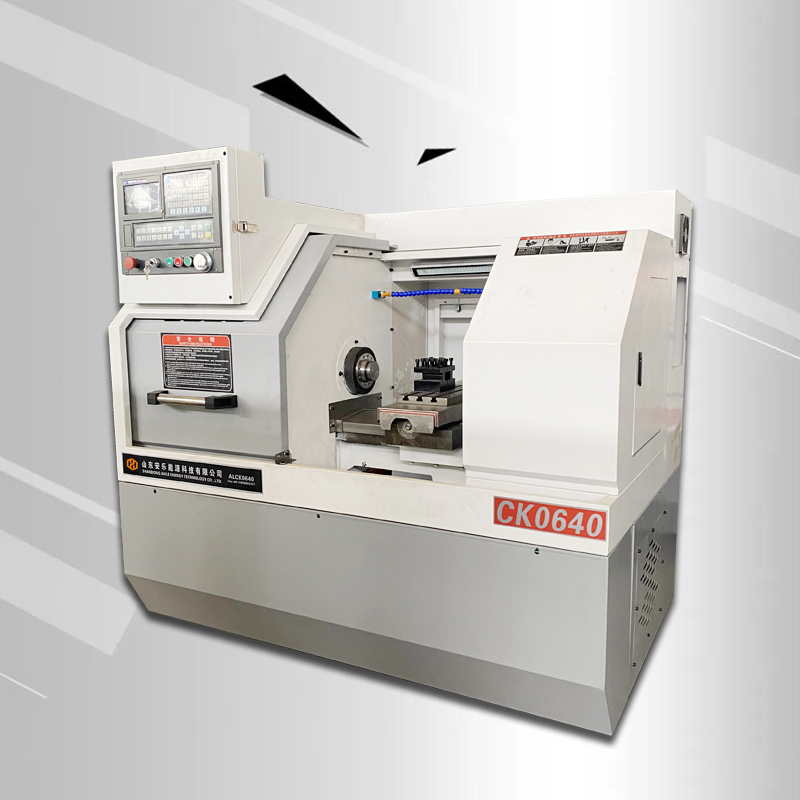

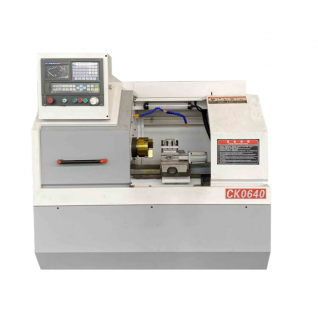

CK0640 High Precision Small CNC Lathe
CK0640 small CNC lathe, this machine tool is widely used in electrical appliances, instrumentation industry, automobile, motorcycle parts, fasteners, bearings, photographic equipment, film machinery, hardware tools, clocks, glasses, stationery, motor valves, gas pipe fittings and others The processing and manufacturing of high-precision and complex parts is the standard setting of the hardware machinery processing industry.
CK0640 CNC lathe Automatic small precision horizontal flat bed CK0640 CNC lathe is a practical and economical CNC lathe developed according to the actual needs of the majority of machining users. It has the characteristics of practicality, convenient operation and high processing precision, and can realize complex parts processing such as straight lines, tapers, arcs, threads, etc., and is especially suitable for single-piece and mass-produced products with complex parts shapes, such as various instruments, meters, electronic products , micro components, connectors, glasses, clocks, lighters and various hardware accessories. Reliable performance.
STANDARD CONFIGURATION:
1) System:GSKTB3, servo motor and drive.
2) Pneumatic collets.
3) Gang Type Tool.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
OPTIONAL CONFIGURATION:
1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck ..
3) 4/6/8station electric tool post.
4) Automatic bar feeder.
Product Parameters:
| Item | Unit | CK0640 |
| Max swing over bed | mm | Φ250 |
| X-axis motor torque | / | 4Nm |
| Z-axis motor torque | / | 4Nm |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| Tool post form | / | Row tool |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Clamping device | / | Pneumatic collet |
| Knife square size | mm | 20×20 (four stations) |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 200(Optional 300/400mm） |
| Z stroke | mm | 220 |
| Main motor power | KW | 3（Optional 4kw) |
| Tailstock | / | No tailstock |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680 |
| Control system | / | GSKTB3 |
Advantages of CK0640 small CNC lathe:
1. The main shaft adopts high-speed contact bearing, which can achieve higher cutting speed during processing;
2. The standard spring chuck is fast and easy to tighten;
3. The bed adopts double-mountain guide rails, which have high guiding precision and can automatically compensate for gaps even if they are worn;
4. The guide rail is super-audio-hardened and has a long service life.
