PRODUCT

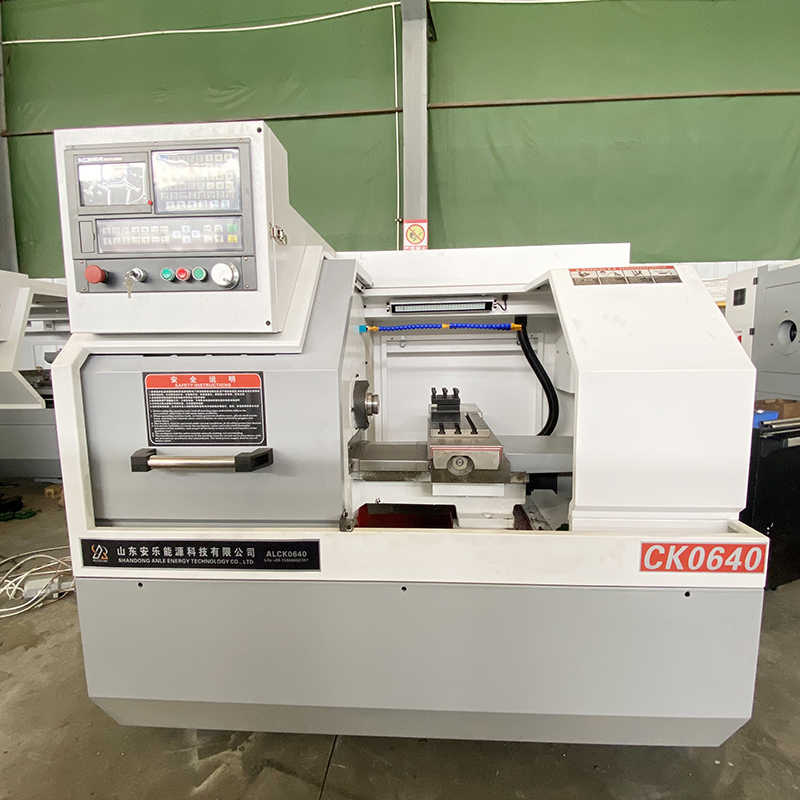

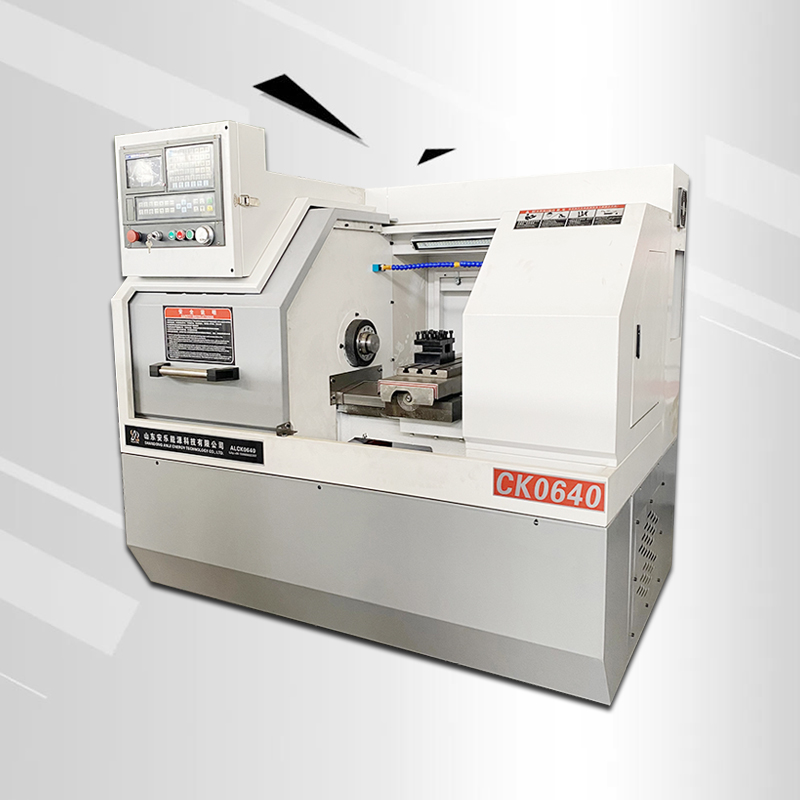

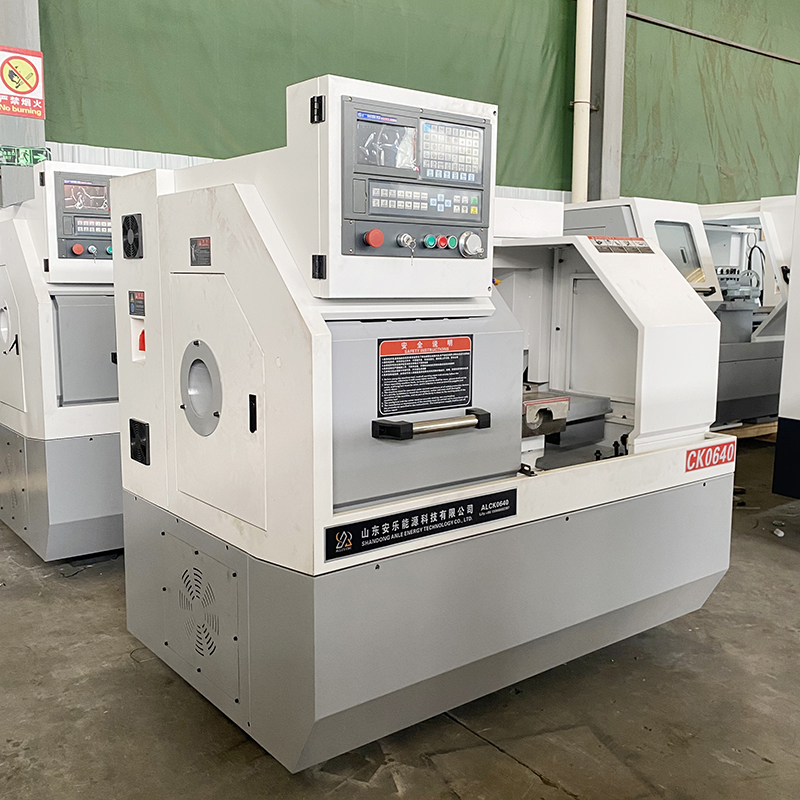

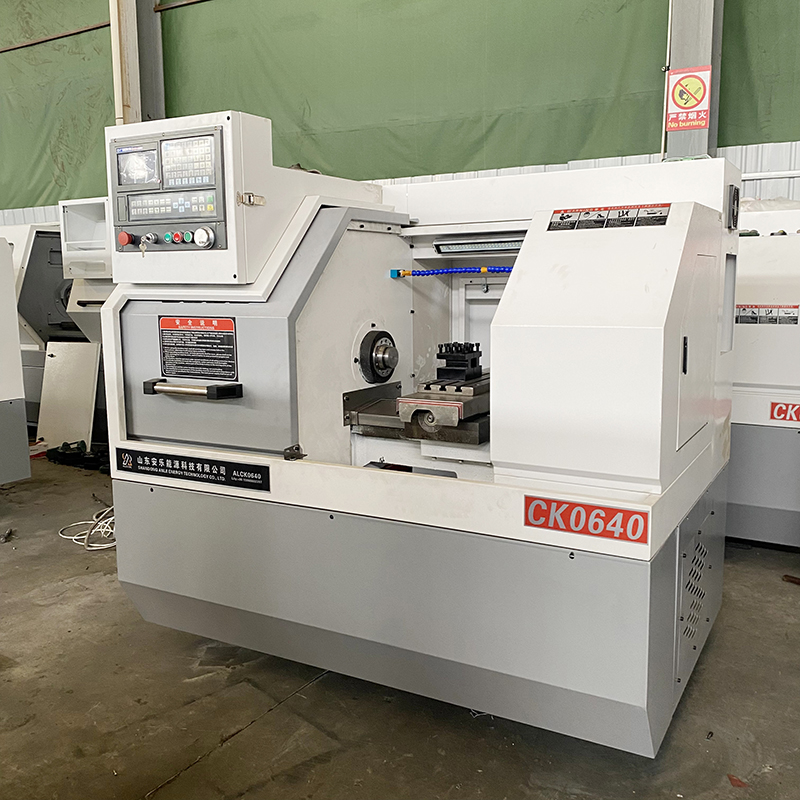

CK0640 Small CNC Metal Lathe Machine
CK0640 is a small CNC lathe suitable for small and medium-sized mechanical processing industries. It has the characteristics of high precision, high efficiency, and easy operation.
This CNC lathe adopts CNC technology and has automated processing capabilities, which can complete processing tasks such as external circle, internal circle, end face, and thread. It is mainly used in industries such as metal processing, mold manufacturing, and mechanical processing.
The CK0640 small CNC metal lathe machine adopts advanced control system, which can realize automated processing, greatly improving production efficiency and product accuracy. It is also equipped with high-precision spindle and feed system, which can achieve high-speed and high-precision processing.
In addition, the CK0640 CNC lathe has the characteristics of small size, light weight, and low power, which are convenient for use in small working environments. It is an economical and practical processing equipment suitable for small and medium-sized enterprises.
Product Specifications:
| Item | Unit | CK0640 |
| The maximum turning diameter of the bed | mm | Φ250 |
| The maximum turning diameter of the pallet | mm | Φ80 |
| Spindle through hole diameter | mm | Φ48 |
| Through hole diameter of drawing tube | mm | 37 |
| Maximum spindle speed | rpm | 220 |
| Spindle motor power | kw | 3 |
| X-axis maximum travel | mm | 200 |
| Z-axis travel | mm | 220 |
| X-axis rapid feed rate | m/min | 6 |
| Z axis rapid feed rate | m/min | 8 |
| Tool holder form | / | Row tool holder |
| Specification of turning tool | mm | 20 |
| Clamping device | mm | Pneumatic collet |
| X-axis repeated positioning accuracy | / | 0.01 |
| Z-axis repeatability accuracy | / | 0.01 |
| Dimensions (length × width × height) | mm | 1640×1200×1650 |
| Machine weight | Kg | 800 |
Application of CK0640 Small CNC Lathe in Precision Small Parts:
The CK0640 small CNC lathe has a wide range of applications in the precision small parts machining field. Due to its high precision and high efficiency, it is often an ideal choice for manufacturing high-precision and complex-shaped small parts.
For example, the CK0640 CNC lathe can be used to machine small precision threads, miniature precision shafts, and other small parts. With its high-precision spindle and feed system, it can achieve high-speed and high-precision machining processes, thereby ensuring the accuracy and quality of parts.
In addition, the CK0640 CNC metal lathe can also be used to machine precision molds, miniature parts, and other components. Its advanced control system can achieve the machining of complex-shaped parts, improve machining accuracy and efficiency, and is suitable for manufacturing high-precision and complex-shaped parts.
In summary, the CK0640 small CNC metal lathe has a wide range of applications in precision small parts machining and is a high-precision and high-efficiency machining equipment that can meet the needs of precision machining.
