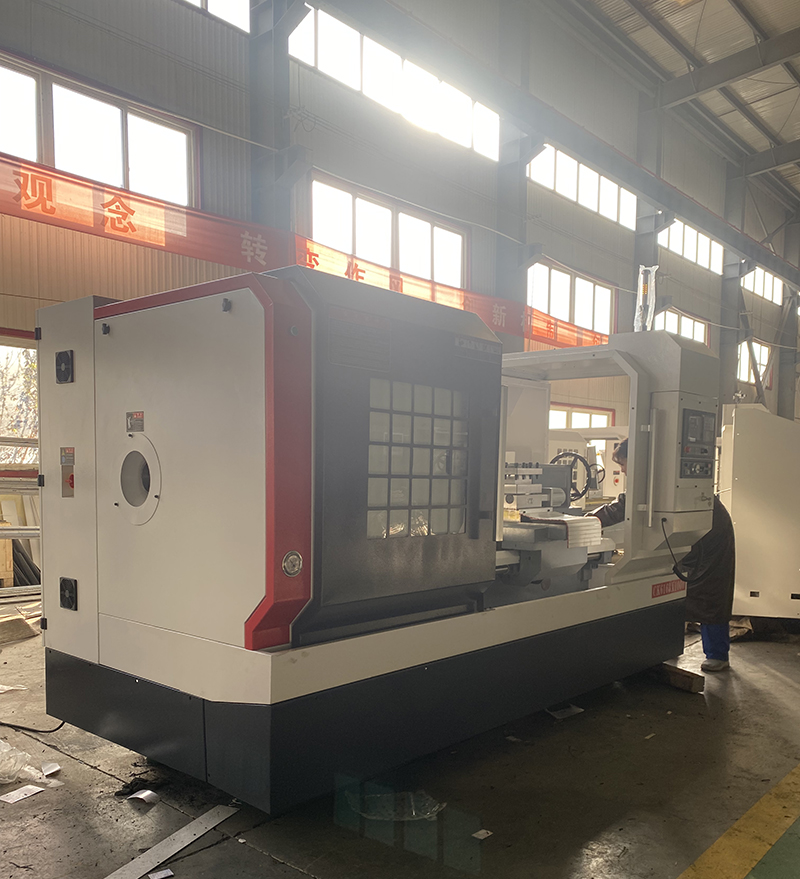

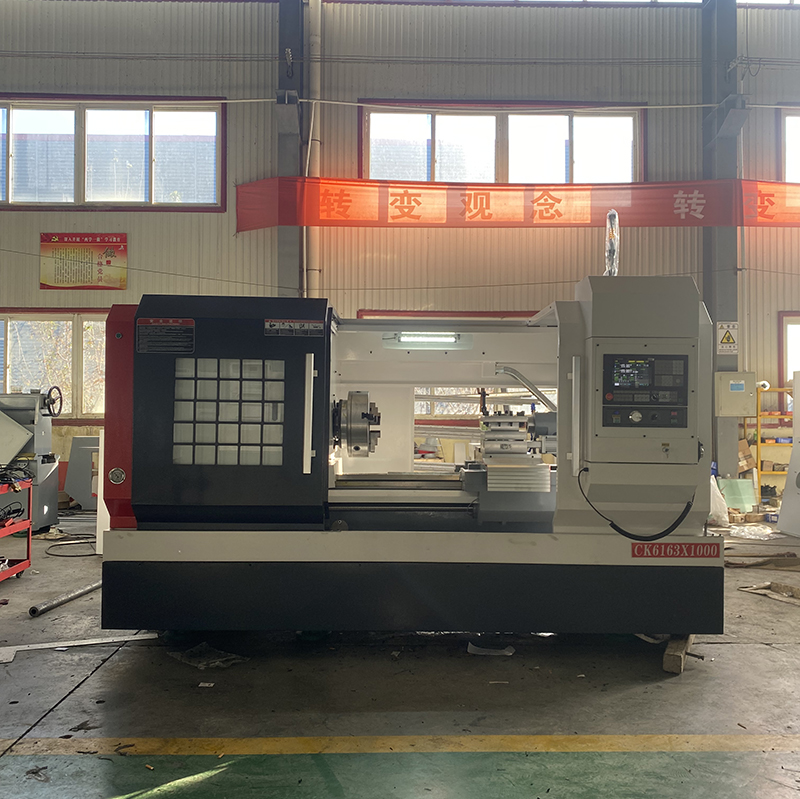

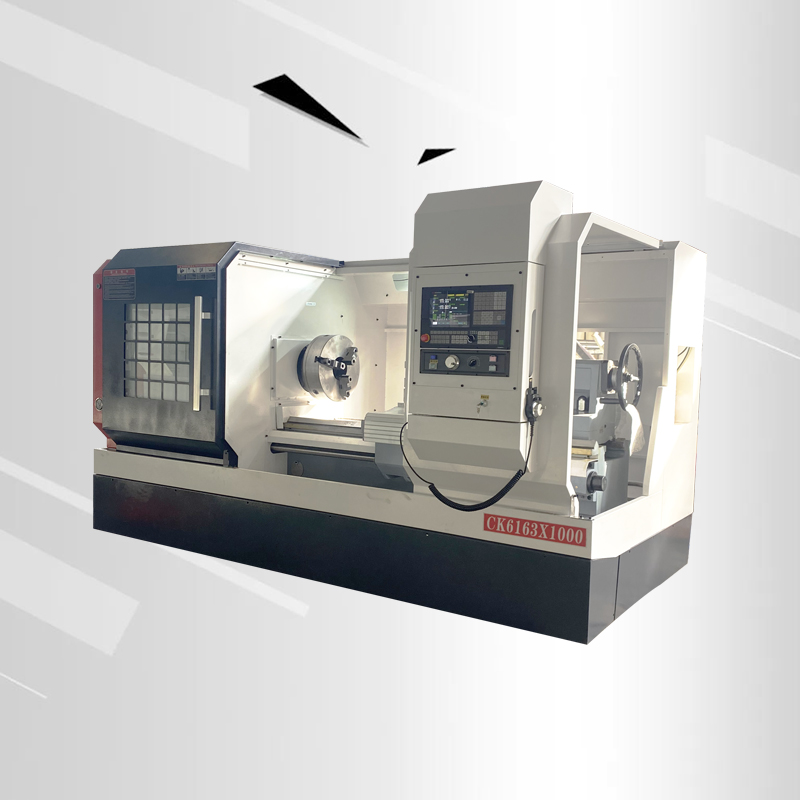

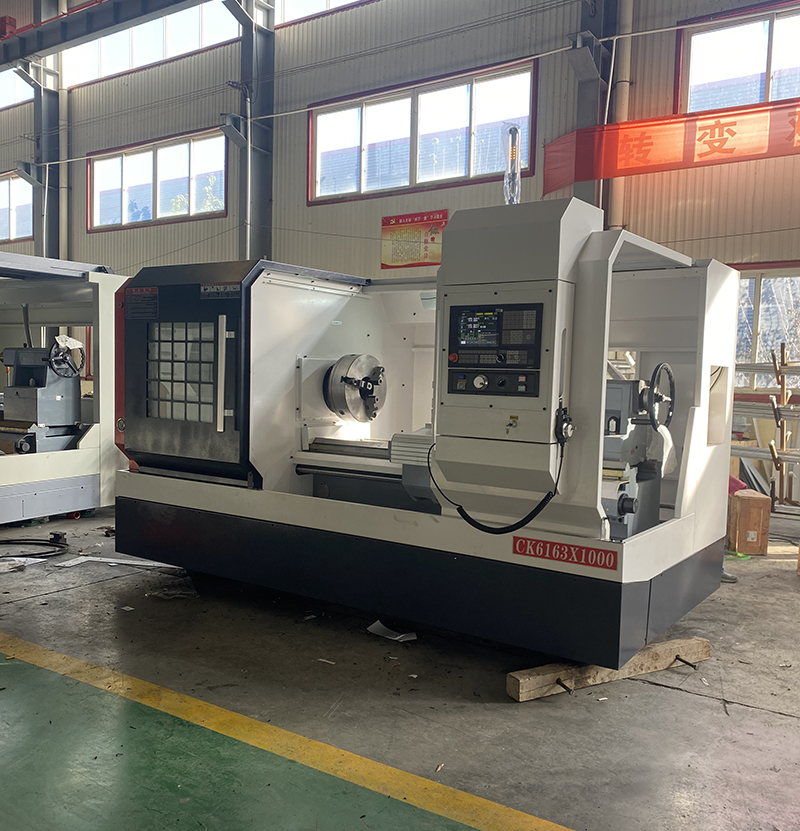

Automatic Metal Turning CK6163 Horizontal CNC Lathe
Maximum turning diameter of bed: 630mm
Maximum processing length: 1000mm
Maximum machining diameter: 630mm
X/Z axis maximum travel: 330/1000mm
This CK6163 horizontal CNC lathe machine is designed to perform turning operations with large allowance removal, including roughing of cast iron castings. Its main purpose is roughing and semi-finishing turning of large parts.
Product Specifications:
| Project | Content | Unit | CK6163*1000 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on skateboard | mm | Ф400 | |
| Maximum processing length | mm | 1000 | |
| Maximum machining diameter | mm | Φ630 | |
| Travel | X/Z axis maximum travel | mm | 330/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
Product Advantages:
This ALHAAS CNC machine is designed to perform turning operations with large allowance removal, including roughing of cast iron castings. Its main purpose is roughing and semi-finishing turning of large parts.
The machine can process both short workpieces and with a processing length of up to 3000 mm, depending on the selected RMC. Axial movements occur on high-precision sliding guides subjected to HDTV hardening.
ALHAAS CNC have high rigidity and allow turning with the removal of large allowances. With the appropriate software (CAD / CAM systems) - the key to the effective operation of CNC machines - reconfiguring the machine by a process engineer takes minimal time.
You just need to change the program, which reduces the complexity of changeover by 80-90% compared to the complexity of this operation on manual machines and ensures the individuality of any complex part.
