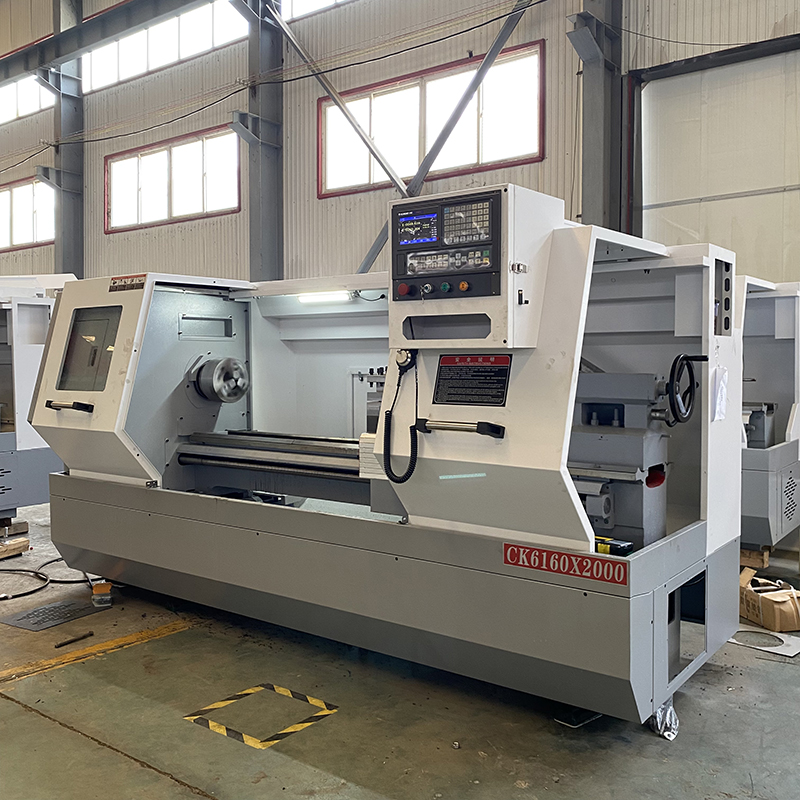

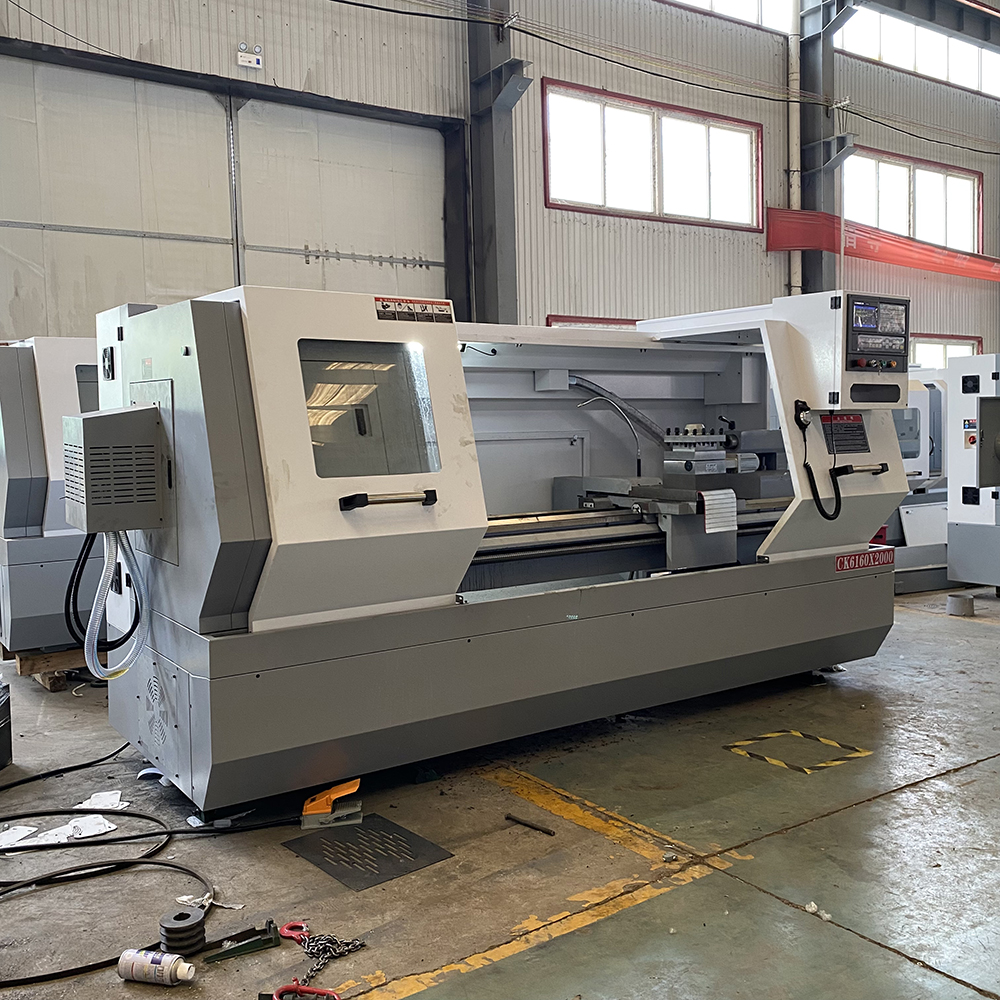

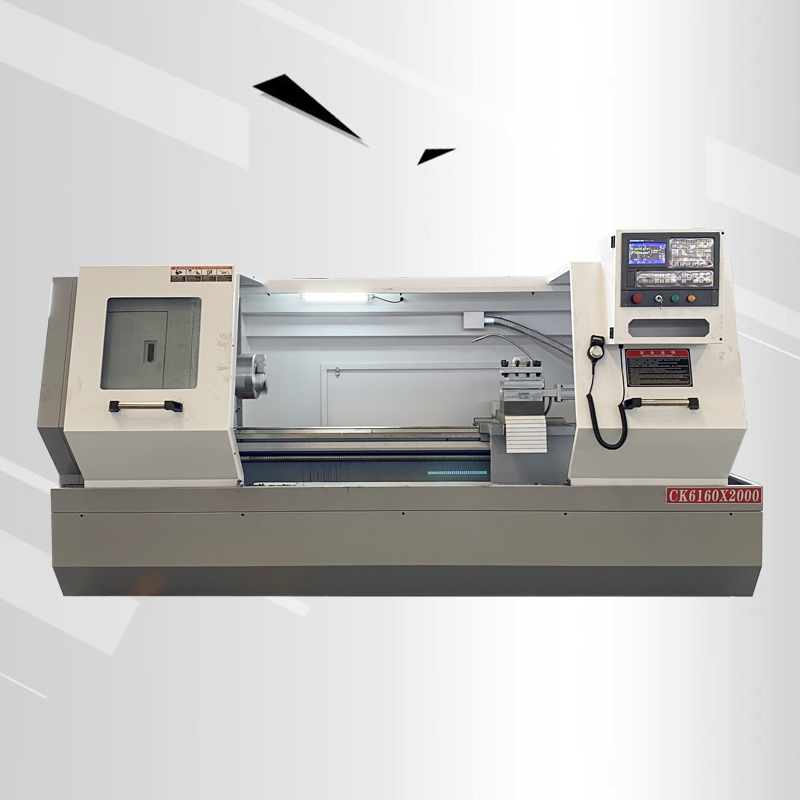

CK6160 Lathe CNC Metal Cutting Lathe
CK6160x2000 Lathe CNC Metal Cutting Lathe
Max swing over bed: 600mm
Maximum turning diameter of carriage: 310mm
Maximum turning diameter: 600mm
Maximum turning length: 2000mm
Spindle hole diameter: 82mm
CK6160 CNC lathe machine for mold industrial machinery manufacturing.
CNC CK6160 lathe machine tool guide rail adopts wear-resistant cast iron and is quenched by super-audio.
The hardness is above HRC45°, which can ensure the processing precision for a long time.
The spindle bearings are made of high-speed mating angular contact bearings.
The specially designed pre-tightening force is that the spindle has high speed and rigidity.
The high-precision ball screw drive is used in the horizontal direction of the carriage, which has good dynamic performance and high machining precision.
Product Features:
CK6160 CNC Flat Lathe One Piece Casting and Hard Guide Way CNC Lathe.
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface,end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
1.High Strength, Widening The Carriage, Suitable For Heavy Cutting.

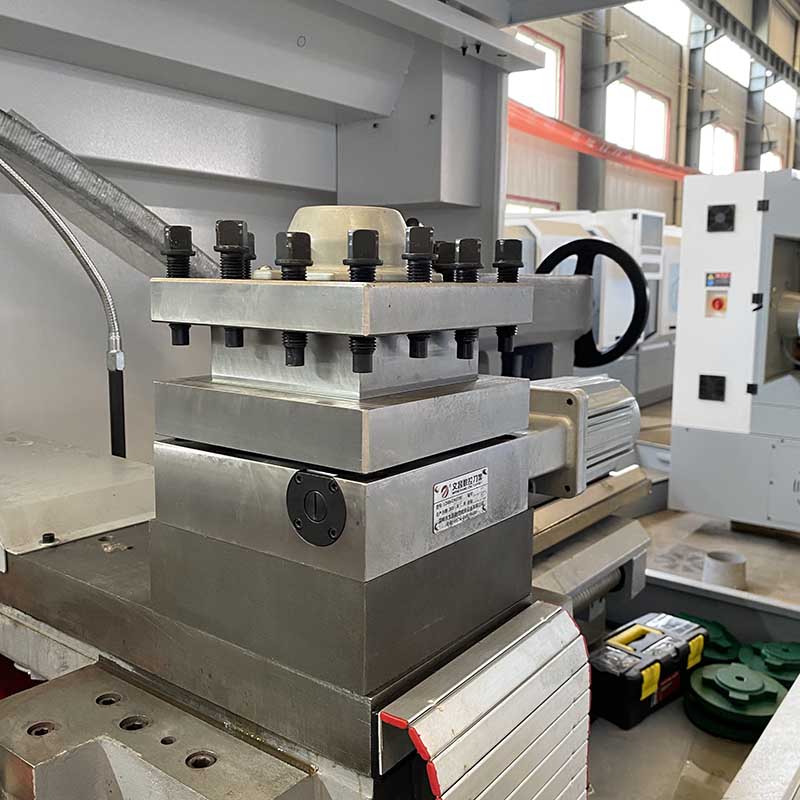

2.Four Position Electric Turret Frequency.
3.Conversion Stepless Speed Regulation Standard Configuration.
4.Manual Chuck Optional Configuration: Hydraulic Chuck.
Product Specifications:
| Item | Unit | CK6160x2000 |
| Max swing over bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Φ310 |
| Maximum turning diameter | mm | Φ600 |
| Maximum turning length | mm | 2000 |
| X/Z axis maximum stroke | mm | 300/2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle series | / | stepless |
| Spindle speed limit | rpm | 150-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool holder type | / | 4-station tool holder |
| Tool bar size | mm | 25*25 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 4400*1700*1800 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
