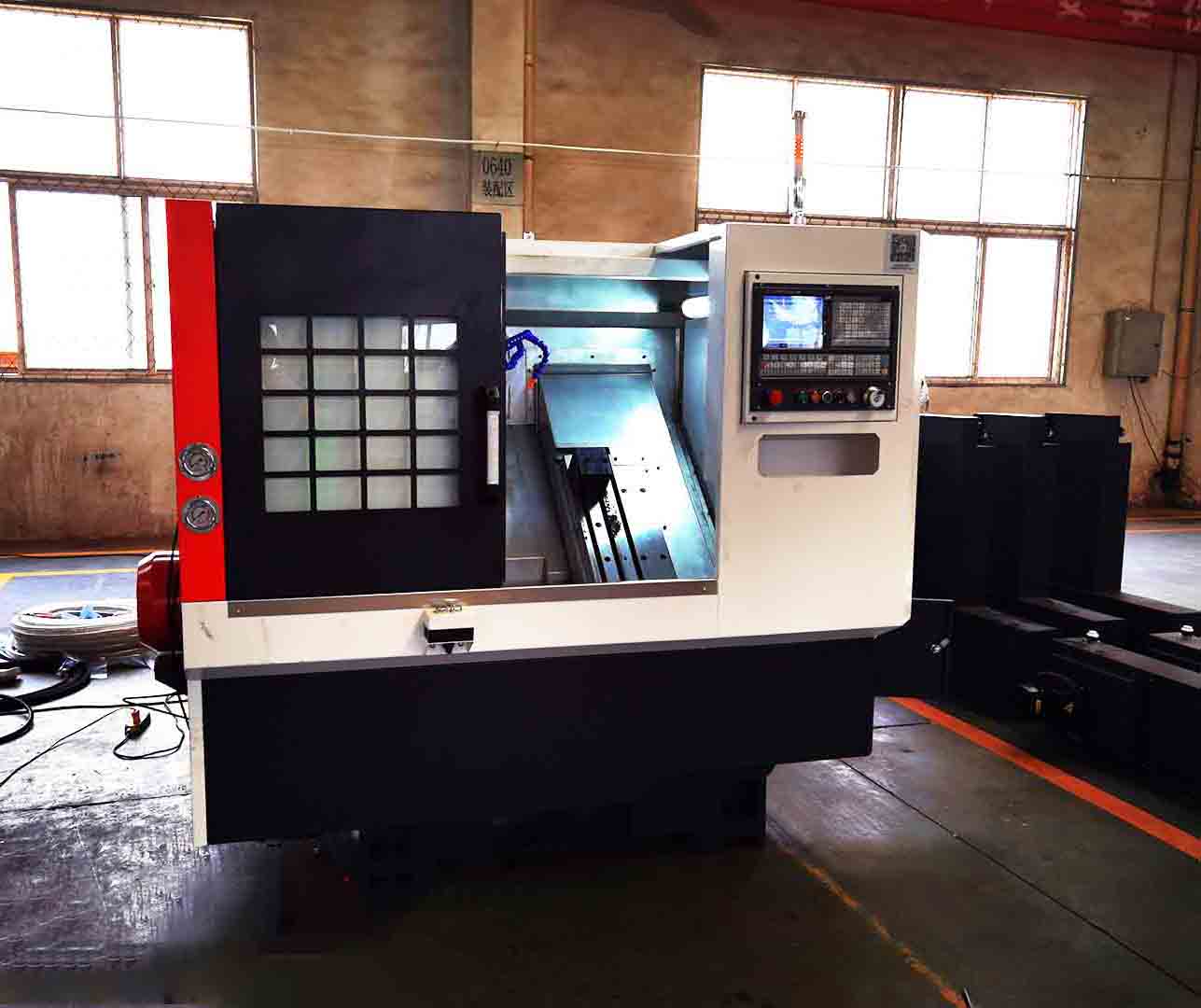

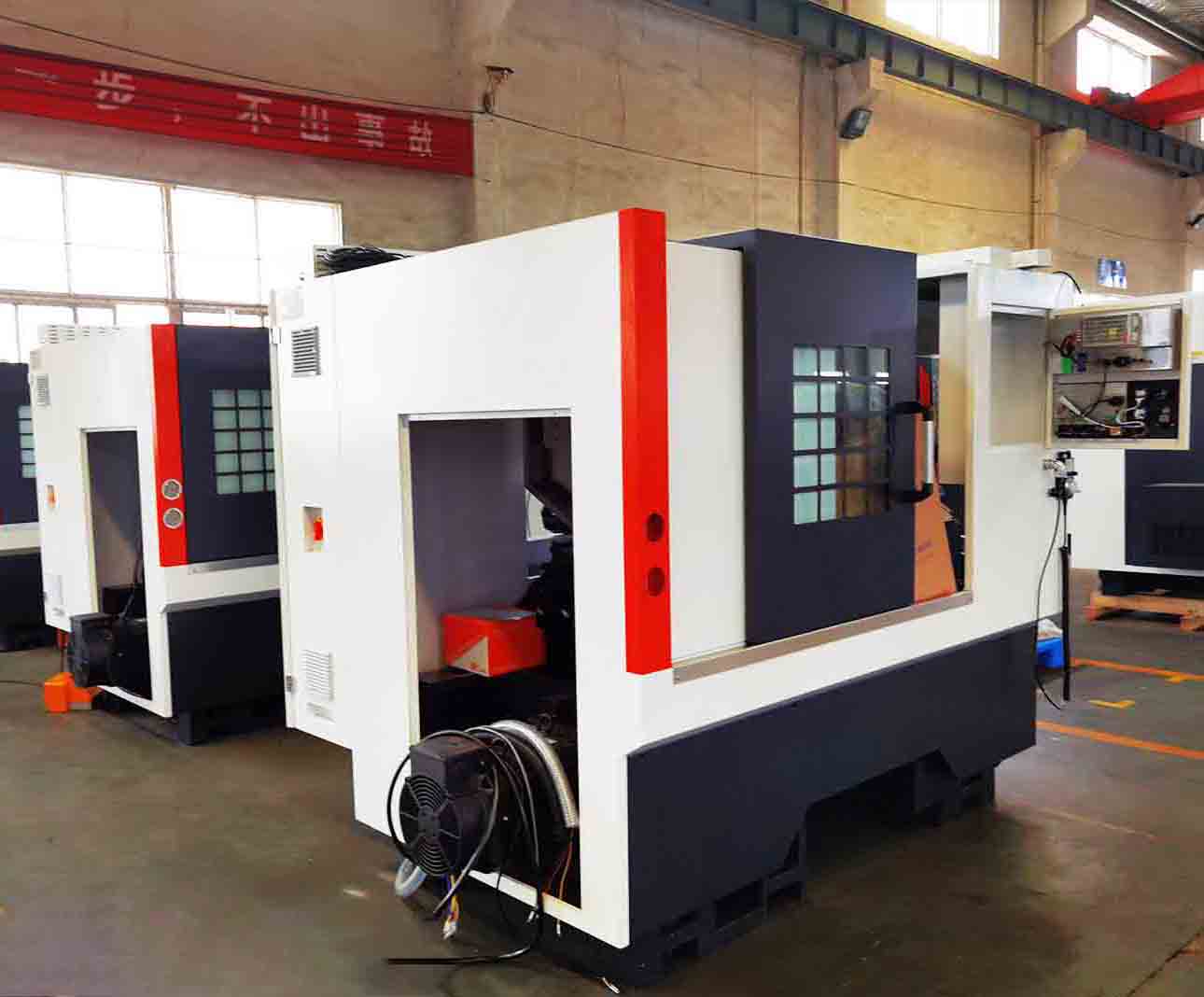

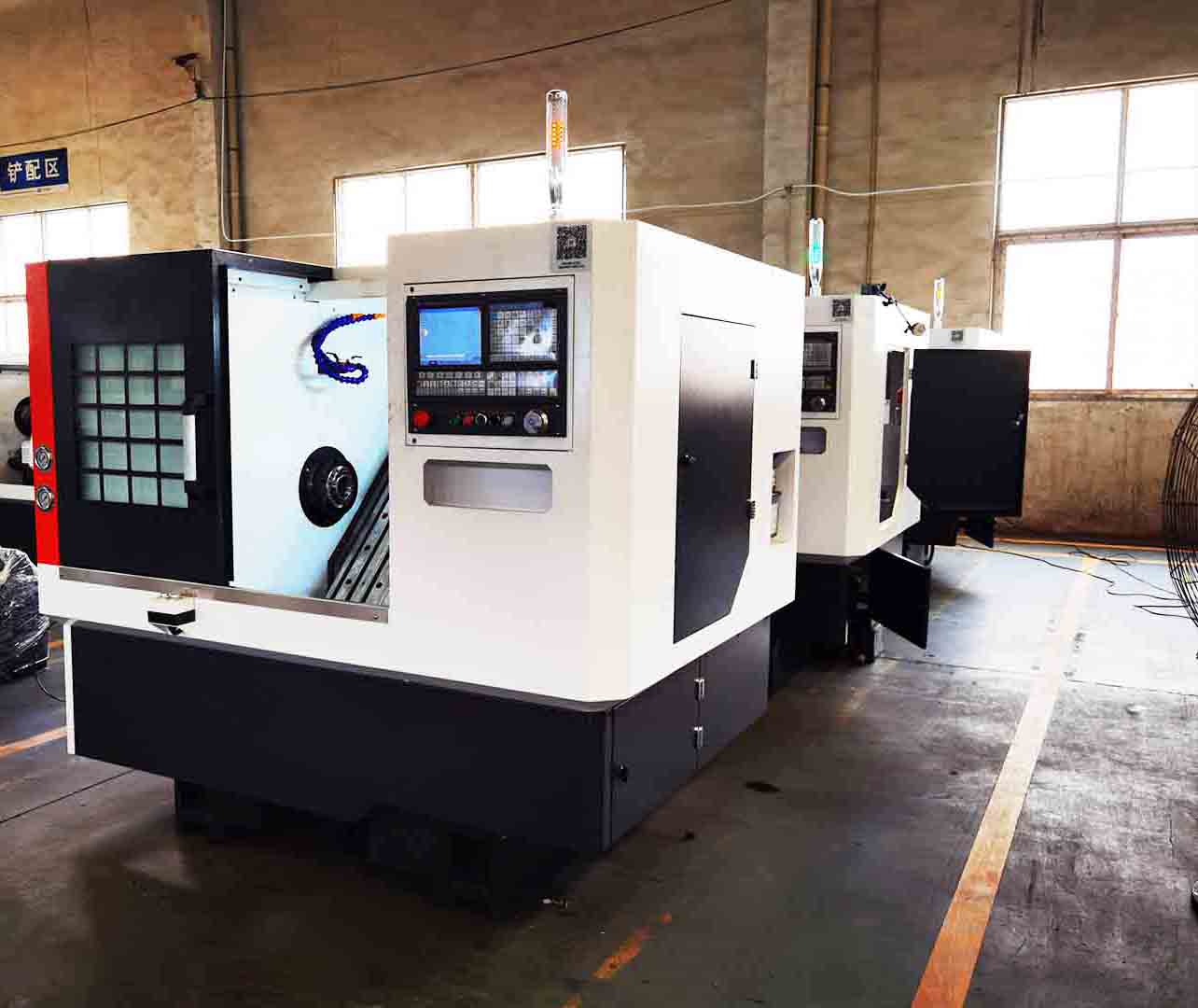

Slant Bed And Linear Guide Way CNC Lathe Machine
Slant Bed And Linear Guide Way CNC Lathe Machine TCK6332:
Max. swing over bed: 320mm
Swing over cross slide: 110mm
Max. processing length: 250mm
Net. weight (about): 2000kg
This slant bed CNC lathe is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and nonferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing.
Product Specifications:
| Specifications | Unit | TCK6332 |
| Max. swing over bed | mm | 320 |
| Swing over cross slide | mm | 110 |
| Max. processing length | mm | 250 |
| X/Z axis travel | mm | 300/250 |
| Spindle bore | mm | 48 |
| Max. spindle speed | rpm | 4000 |
| Machine dimension(L×W×H) | mm | 1920×1350×1700 |
| Net. weight (about) | kg | 2000 |
Product Advantage:
1. The 45° overall high-strength cast iron slant bed is used for smooth chip removal and good rigidity;
2. Highly rigid rolling guides for high positioning accuracy;
3. Optional tool post (electric turret, hydraulic turret)
4. Servo spindle drive, spindle high and low speed constant torque output;
5. The machine tool is fully protected, the appearance is beautiful, and it has good operation and pleasantness.
