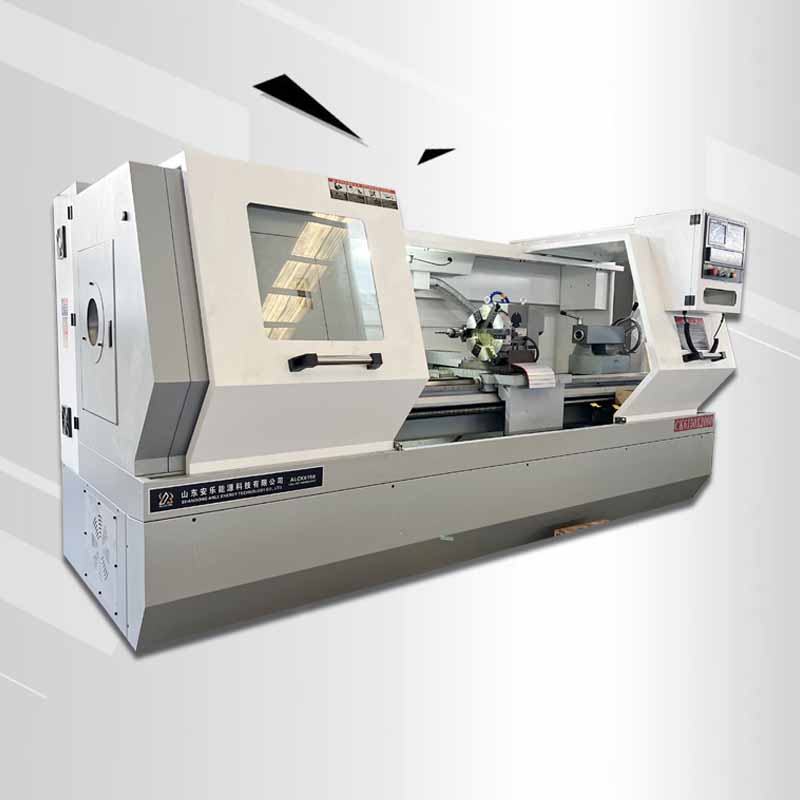

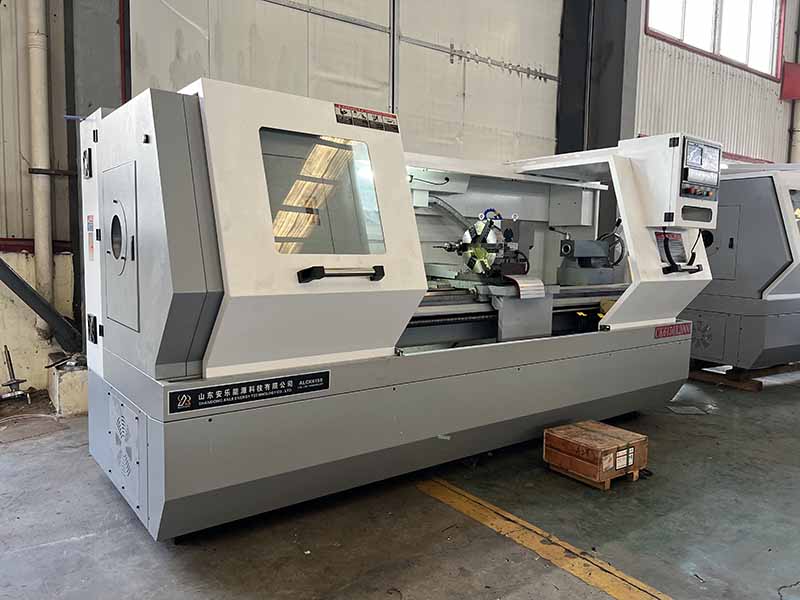

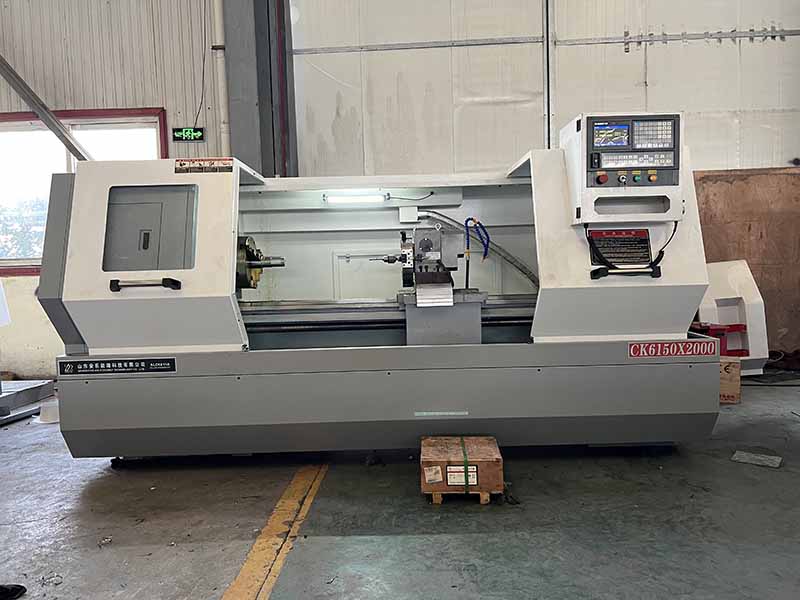

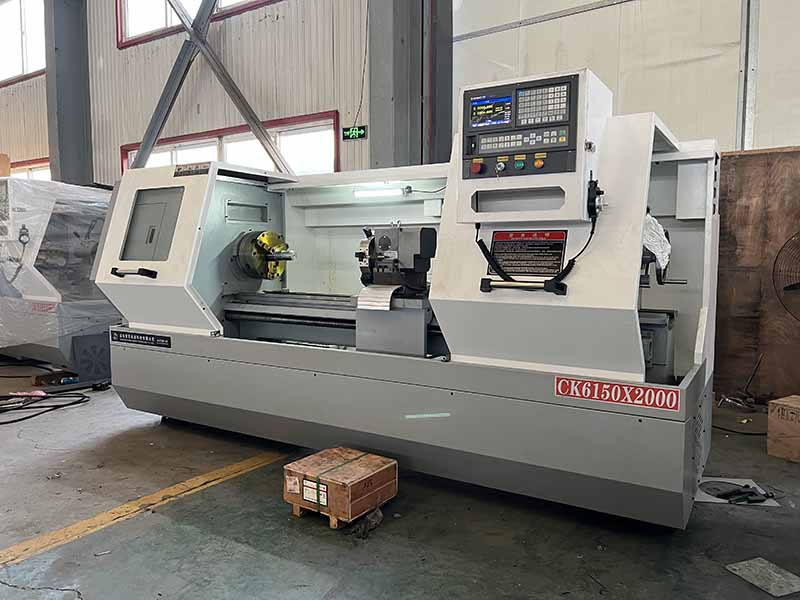

Automatic CK6150 CNC Metal Cutting Lathe Machine
Max swing over bed: Φ500mm
Maximum swing over slide: Φ290mm
Maximum cutting diameter: Φ500mm
Maximum processing length: 2000mm
Spindle hole diameter: Φ82mm
Cnc Lathe Flat Bed Horizontal Cnc Lathe Machine
The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded.
ALHAAS CNC’s CK series lathe is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
Product Specifications:
| Item | Unit | CK6150*2000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 2000 |
| X/Z axis maximum stroke | mm | 2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Spindle end | mm | A2-8/C8 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool holder type | / | 4-station tool holder |
| Tool bar size | mm | 25*25 |
| Repeated positioning accuracy of tool post | mm | ≤0.004 |
| Diameter of tailstock sleeve | mm | Φ65 |
Product Advantage:
1. ALHAAS CNC CK6150x2000 CNC lathe is optimized and improved based on the traditional CK6150. It has the characteristics of high precision, high speed and high rigidity. It is convenient and easy to operate, and the built-in protection keeps the environment clean.
2. The flat bed is molded from resin sand in one piece. The specially expanded guide rail has gone through several heat treatment processes such as aging and high frequency hardening, which can maintain the best mechanical and processing accuracy for a long time.
3. The CNC turning center adopts high-precision ball screw shaft, and the bearing adopts high-quality specific angular contact ball bearing, which is connected to the servo motor through an elastic coupling, and has the advantages of high transmission accuracy and long service life.
4. The CK6150 CNC lathe machine is equipped with a servo-spindle motor, which can realize stepless speed change and meet different workpiece processing speed requirements to optimize processing performance and cutting performance.
Large through hole spindle:
The spindle adopts pair design of high rigidity double row cylindrical roller bearing and double direction thrust ball bearing. The servo motor is equipped with gear shifting, which can realize stepless speed change and meet the requirements of processing.
Spindle power: 7.5kw
Spindle hole diameter: Φ82mm
