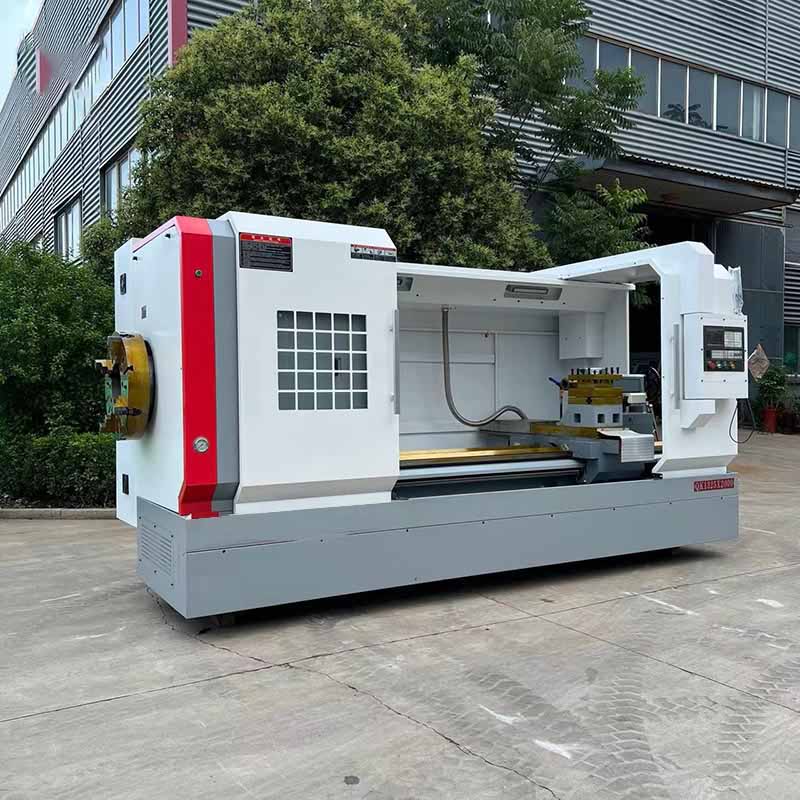

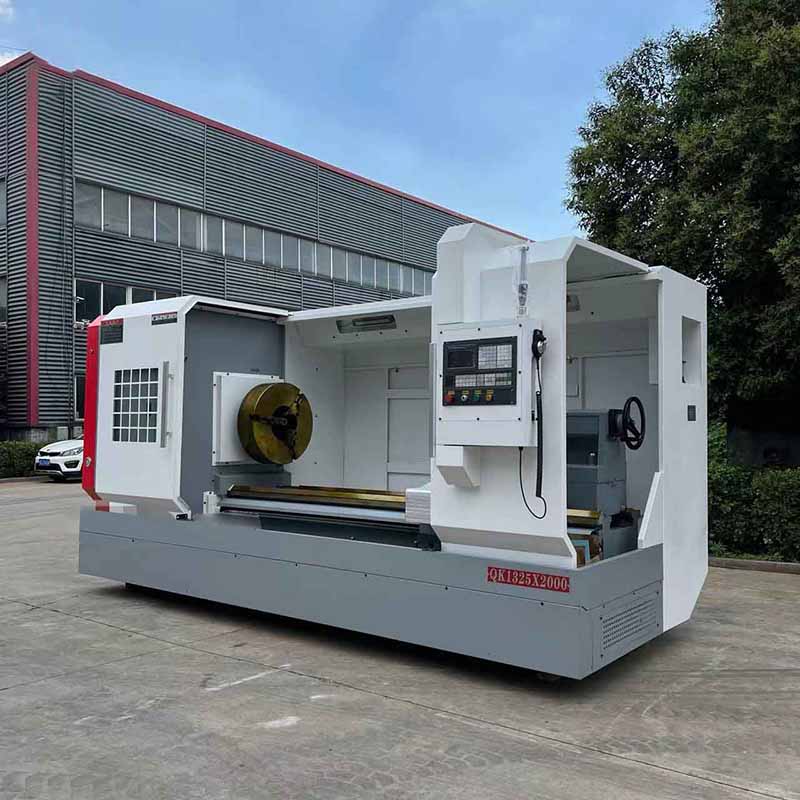

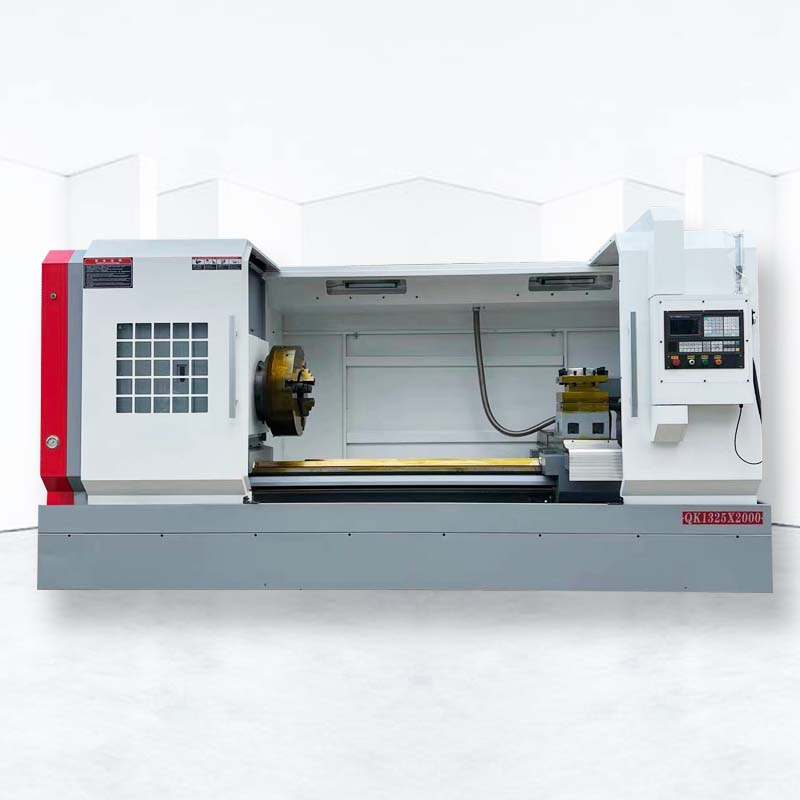

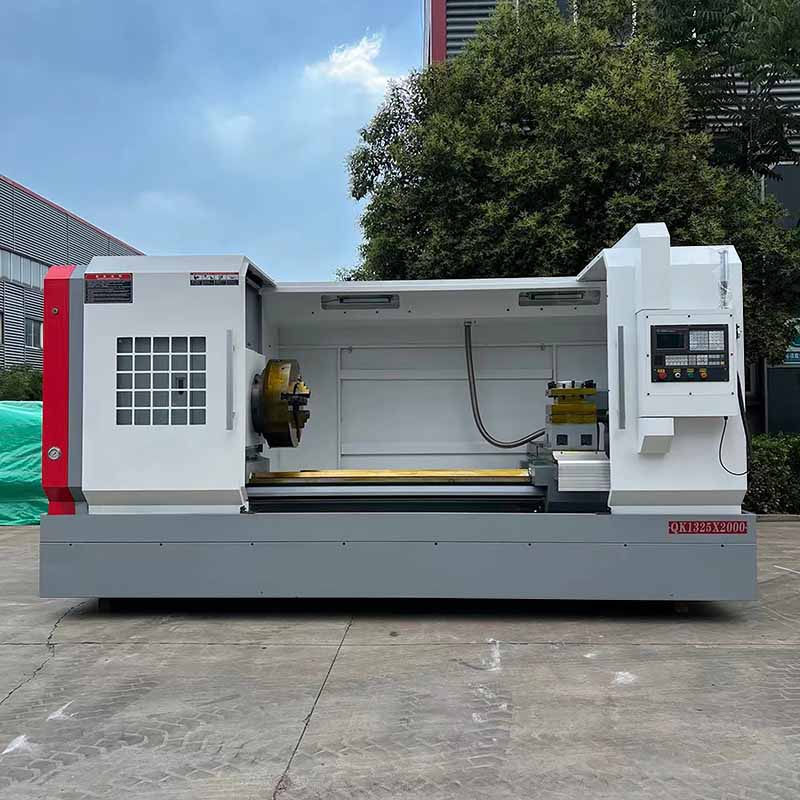

Auto Feed Turning QK1325 CNC Pipe Thread Lathe
The oil country lathe is mainly developed for the pipe thread turning in the oilfield and is suitable for turning of various pipe threads.
QK1325 series CNC oil pipe lathe is mainly designed for processing internal and external pipe threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Product Specifications:
| Specification | Unit | QK1325 |
| Swing over bed | mm | 800 |
| Distance between centers | mm | 1000/1500/3000 |
| Guideway width | mm | 50-255 |
| Max. load capacity | mm | 600 |
| Spindle bore taper | mm | 255 |
| X axis travel | mm | 420 |
| Z axis travel | mm | 750/1250/2750 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |

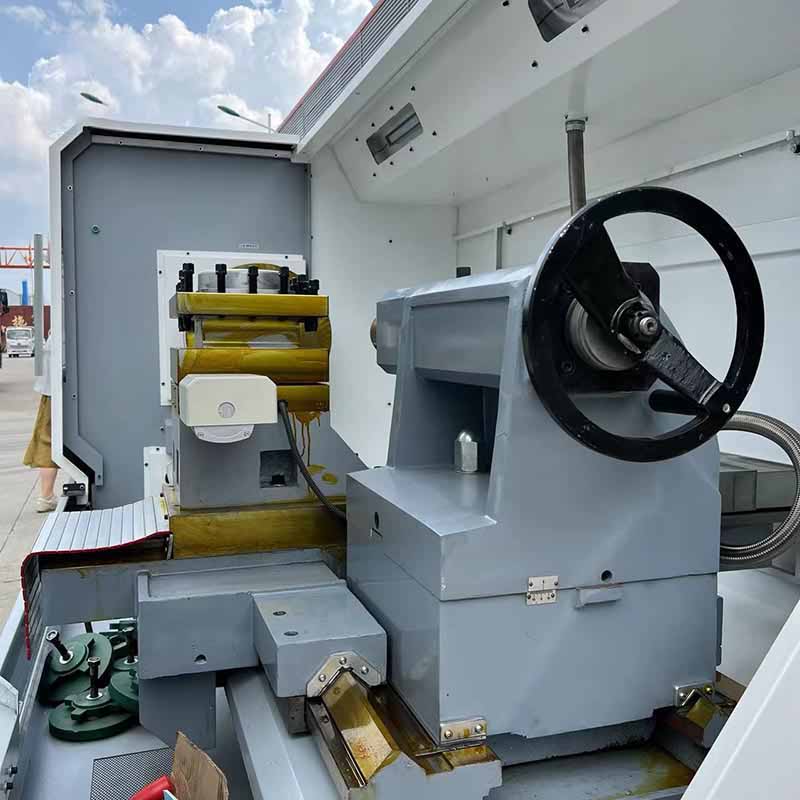

| Tailstock quill diameter | mm | 120 |
| Tailstock quill taper | / | MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kw | 15 |
| Coolant pump motor | kw | 0.125/0.37 |
| Net weight | T | 6.0/6.5/7.5 |
Product Advantage:
Big spindle bore and double chuck to ensure process big diameter pipe;
One-piece bed adopts high strength iron to ensure rigidity and precision;
Ultrasonic frequency quenched guide-ways ensure good wear-resistance;
Carriage and guide way contact surface use Turcite B to maintain accuracy.
