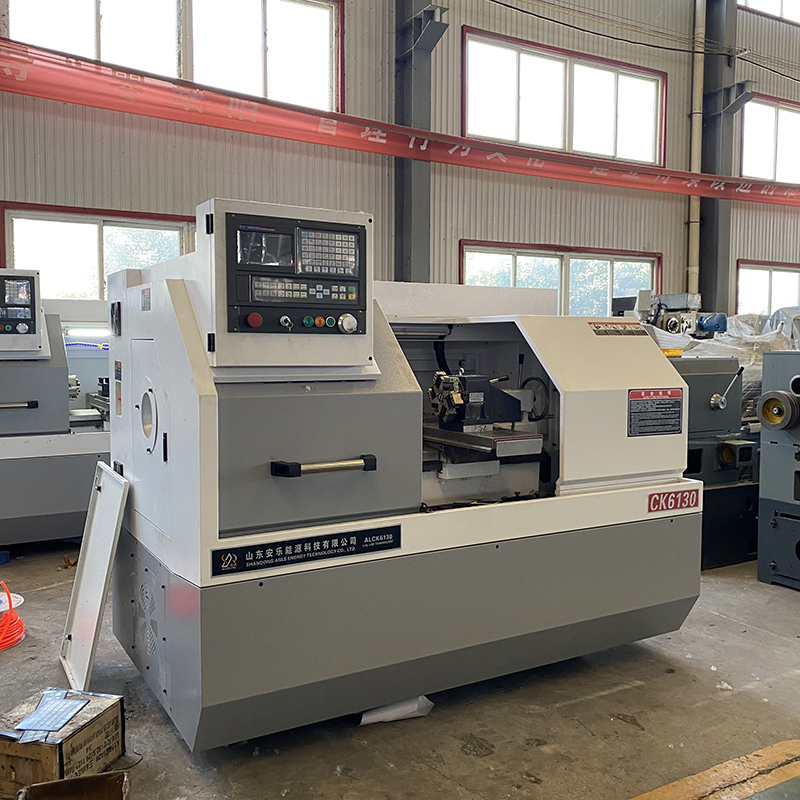

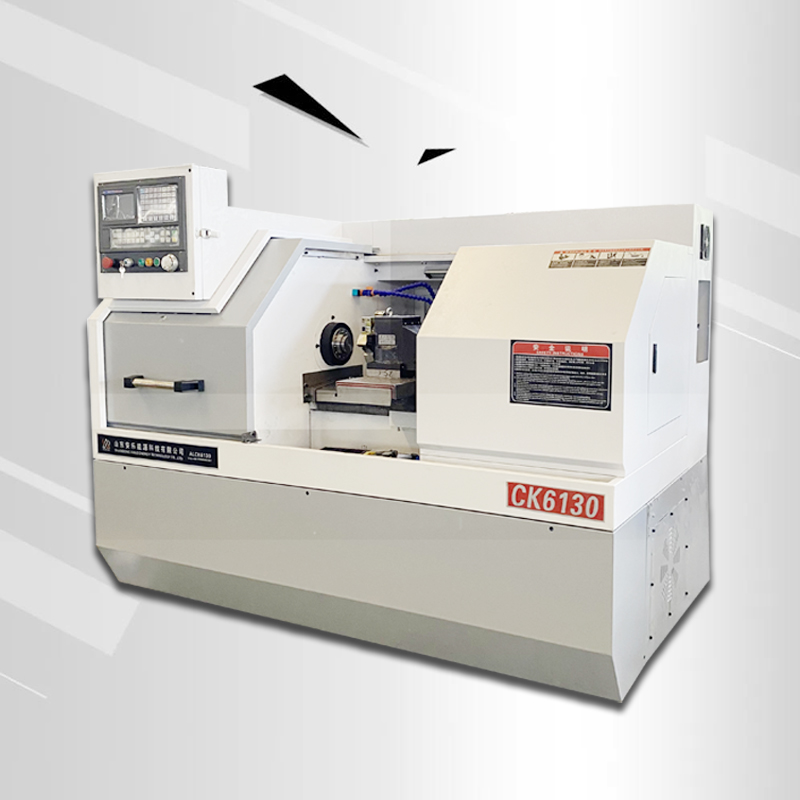

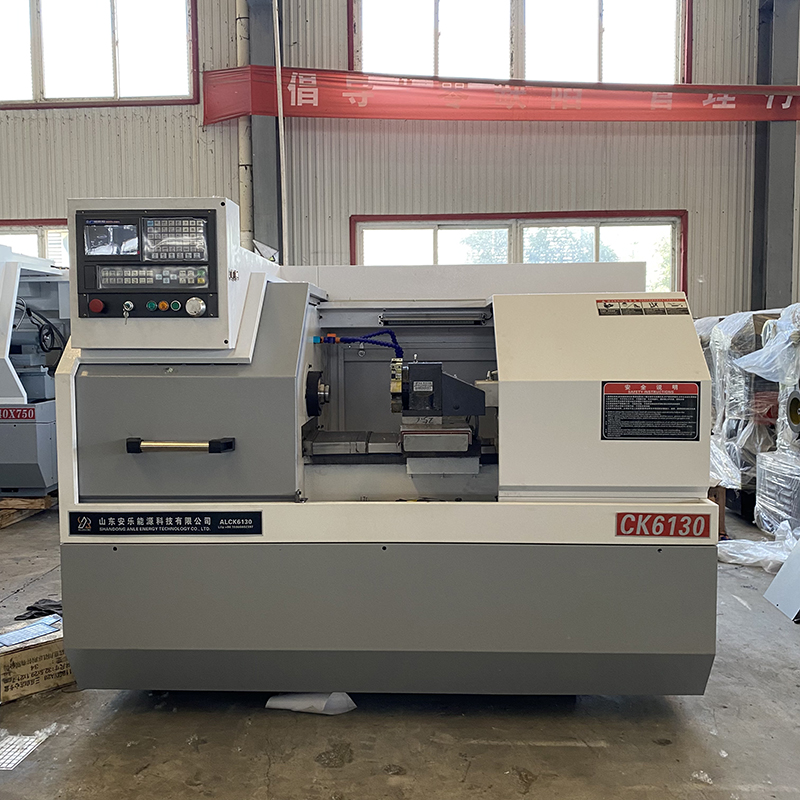

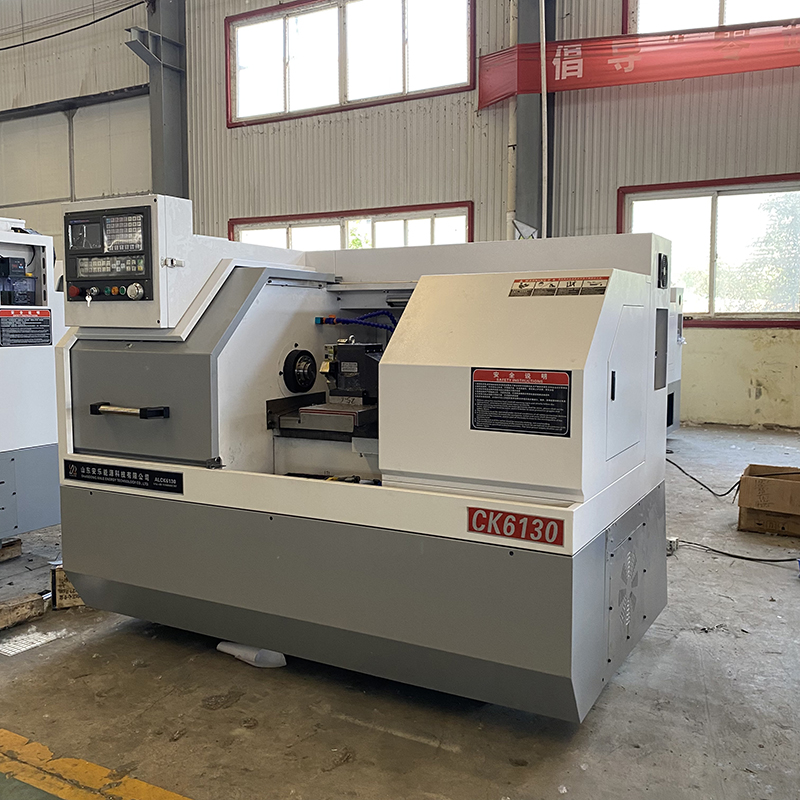

CK6130 CNC Turning Machine CNC Mini Lathe
Max swing over bed: 300mm
Maximum swing over slide: 130mm
Spindle hole diameter: 48mm
X/Z direction fast moving speed: 6/8m/min
This CK6130 CNC turning machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.
Product Specifications:
| Item | Unit | CK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| Spindle speed limit | rpm | 2200 |
| Tailstock | / | Manual |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1600×1100×1650 |
CK series flat bed CNC lathe is an economical numerical control lathe developed by ALHASS CNC according to the market demand. it is also called numerical control turning center. it can complete the production and processing of a lot of materials.
CK6130 CNC Lathe Main Features:
1) CNC contrller: GSK928, KND, Siemens or Fanuc
2) Peneumatic collet or 3-jaw chuck (160mm).
3) Four station electric tool post or Six station/ Eight station electric turret
4) Manual tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.
